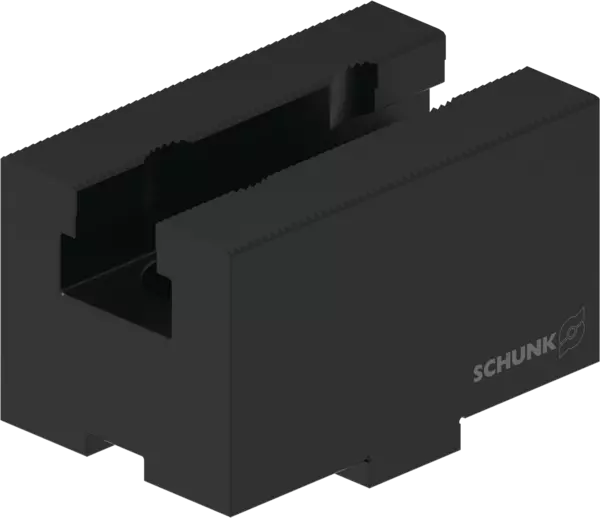

Zwischenbacke Variante D
For the combination of different interfaces
Zwischenbacke Variante D, For the combination of different interfaces
Product features:
Product features:
- Serration: Tongue and groove
- Mounting: Fine serration
Technical details
| Chuck-sided Interface | Tongue and groove |
|---|---|
| Jaw interface | Fine serration |
General notes about the series
Material
Steel (16MnCr5)
Surface treatment
Case hardened and ground
How to get to the online configurator
The configurator is either linked to the appropriate gripper on the SCHUNK website or can be called up directly via http://www.baby7.net/de/de/konfigurator-easyjaw called up directly.
Scope of delivery
Intermediate jaws (1 set = 3 pieces) and for version A and D the required T-nuts.
